RTM96 CAT-M1/NB1 Modem Board

RTM96 LTE CAT-M1/NB1 modem board is designed with Quectel LTE BG96 Cat.M1/NB1 cellular module. It is able to perform LTE CAT-M1 and NB1 dual mode communication at ultra-low power consumption. RTM96 is powered by Renesas Synergy S5D3 with built-in MQTT/TLS protocol and wireless frameworks designed for the IoT market. RTM96 can enable better / wider coverage for network-connected devices, e.g. Electrical Meter, Environment Monitoring devices and etc.

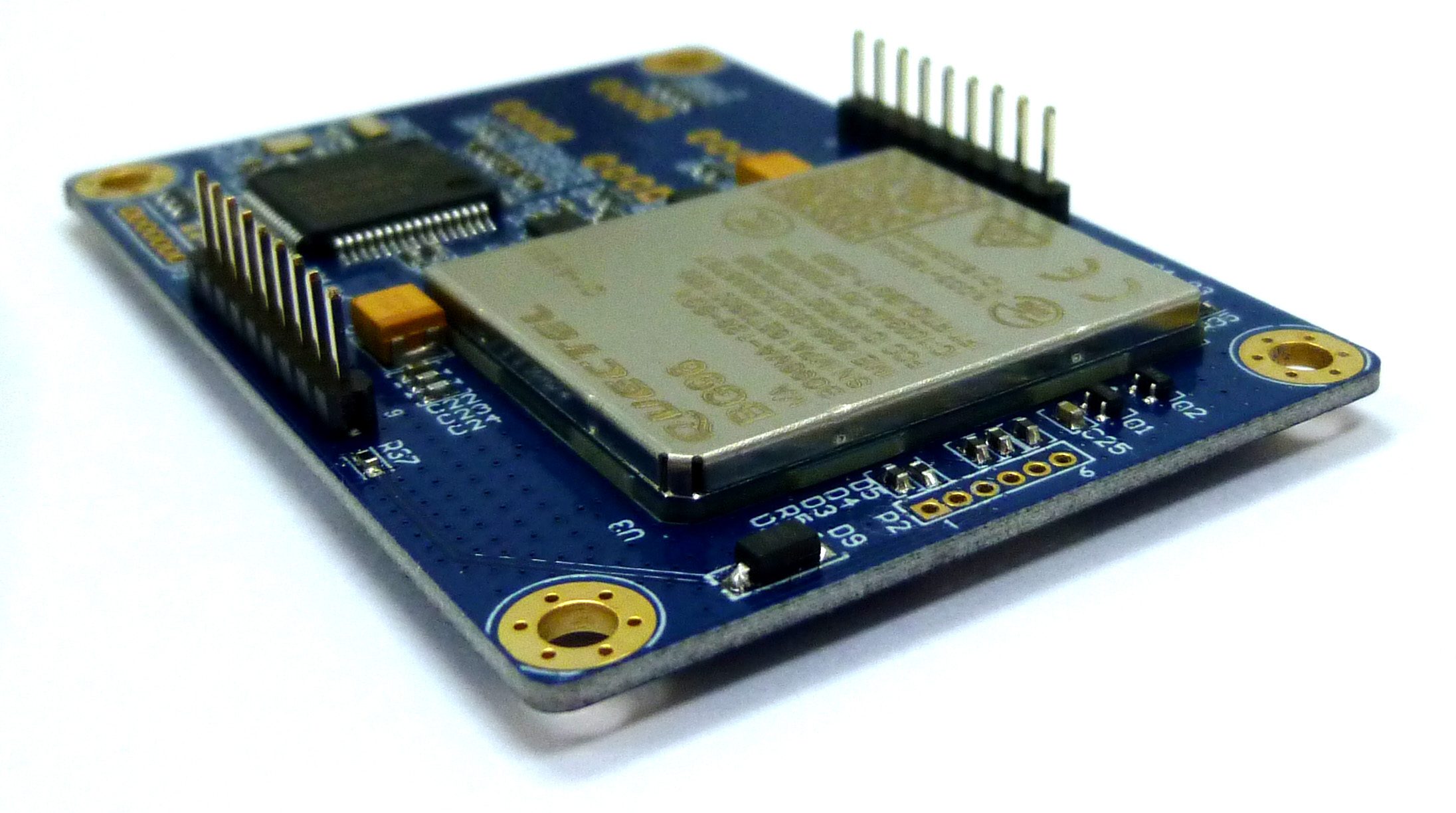

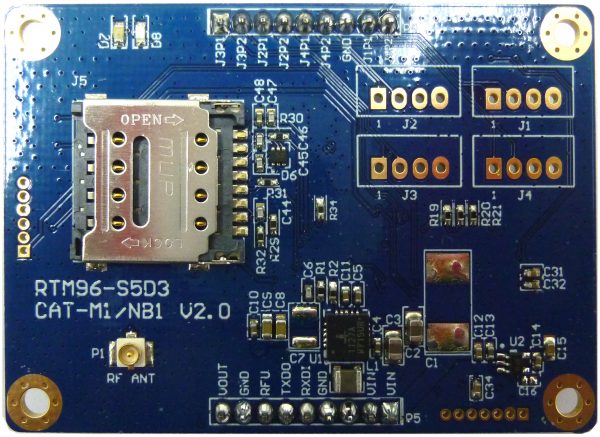

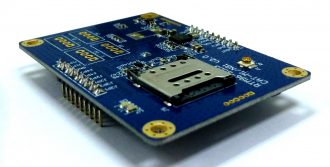

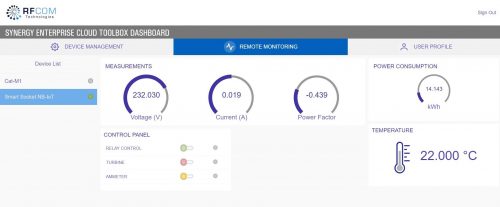

RTM96 LTE CAT-M1/NB1 modem board is not only the best choice of GPRS replacement but also an ideal module for customer to develop their application software in fast time-to-market. The pre-programmed firmware enables customers to directly connect to Synergy Enterprise Cloud Toolbox Dashboard and various on-board  digital & analog interfaces give user extensive flexibility in the choice of sensor connectivity for the application.

RTM96 CAT-M1/NB1 modem board has the advantage of compact size, Synergy software solutions and rich interfaces design for IoT market.

Product Description

Features:

  • LTE Cat M1/Cat NB1 with ultra-low power consumption
  • Data rate
    • Cat M1: Max. 375kbps (DL) / 375 kbps (UL)
    • Cat NB1: Max. 32kbps (DL) / 70 kbps (UL)
  • Support PPP/TCP/UDP/TLS/FTP(S)/HTTP(S)/MQTT protocols
  • Support Renesas Synergy Solutions
  • Built in RF connectors, 3.3V DC output and external GPIOs



Specifications:

  • Size:                   L 57mm x W 40mm
  • Power Supply:   +5VDC input
  • SIM Card:          Micro SIM
  • MCU:                 Renesas S5D3
    • ARM Cortex-M4 with FPU
    • CPU Frequency: 120MHz
    • Memory: 256KB SRAM
    • Flash: 512KB
  • Software:           Synergy software SSP v1.5.0
  •  Interface:
    • RF: IPEX RF connector
    • External: 2x 2.00mm pitch 9-pin header
      • UART/I2C/Digital IO/Analog ADC interface for expansion to external sensors and actuators
    • On-board: UART/I2C/Digital IO/Analog ADC
  • Operation temperature: -35°C to +80°C
  • Storage temperature: -40°C to +85°C



Applications:

  • Smart metering (electricity, gas and water)
  • Industrial alarms & fire alarms for homes & commercial properties
  • Smart city infrastructure, i.e. street lighting or dustbins
  • Building Automation
  • Environmental Monitoring



Documents:



Software & Tools:

  • N.A



Ordering Code:

RTM96:              RTM96 LTE CAT-M1/NB1 S5D3 Modem Board

Ordering information:      Please contact local distributors or email to sales@rfcom-tech.com
