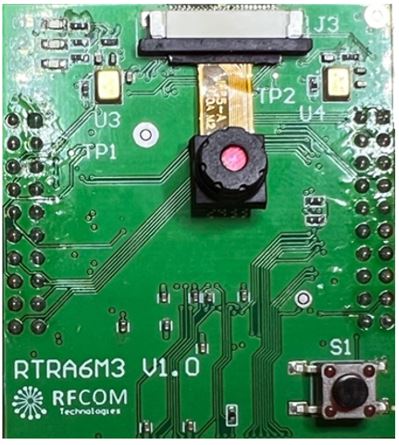

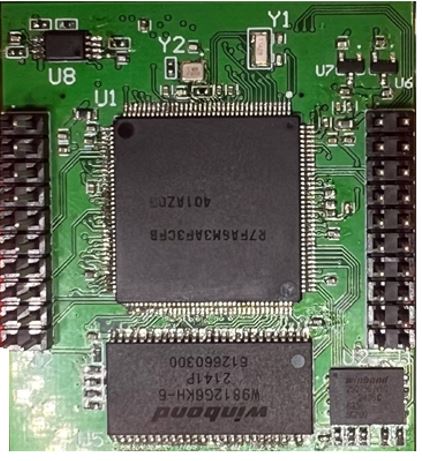

RTRA6M3 Module Board

    The RTRA6M3 module board is designed with the Renesas RA6M3 chip, enabling it to perform facial recognition using the AI/ML solutions provided by the RA6M3 chip.

    The Cortex-M4 RA6M3 operates at 120MHz and offers rich connectivity, making it suitable for IoT applications requiring TFT displays, Ethernet, security features, large embedded RAM, and USB High Speed (HS).

    RFCOM Technologies has designed the RTRA6M3 AI facial recognition module to be an all-in-one, compact solution capable of performing facial recognition tasks, such as unlocking e-lock application

    Category:

      Features:

      • Size (L x W x T):               50mm x 45mm x 15mm
      • Power Supply:                  +3.3VDC input /1.5 A
      • MCU:                                Renesas RA6M3
        • ARM Cortex-M4 with FPU
        • CPU Frequency: 120MHz
        • Flash: 64KB
        • Software: TBD
      • Interface:                        UART/GPIO/CAN/USB/SPI interface for expansion,
      • External:                         2x 2.54mm pitch 20-pin header.
      • On-board:                       UART/GPIO/SPI/CAN/USB/Ethernet
      • Memory:                        128MB SRAM + 256MB NFLASH
      • Operation temperature:  -40°C to +85°C
      • Storage temperature:     -55°C to +125°C



      Applications:

      • AI Facial Recognition

      Documents:

      Ordering Code:

      RTRA6M3 Module Board
