RTT7806 Electronic Tag

RFCOM Electronic Tag RTT7806 are fully developed by RFCOM Technologies Pte Ltd, used in hotel / hospitality / logistic / inventory tracking application, where tags are attached to guest’s luggage, removable trolley, removal targets and other inventories. It has alert feature with flashing & beeping which can be trigger by concierge or logistic team member in the integrated application.

QR code enable user to register the tag in the backend system where build-in encryption and unique Tag ID provides extra security in the deployment.

Tags can last up to 3 months from a single full charge or longer by adjusting the operation interval time.

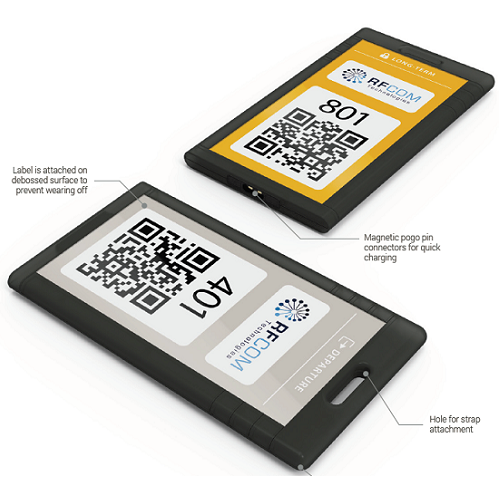

The name card sized tag can be easily adapted into solution for wide range of scenario such as hotel, hospitality, logistic, healthcare, robotic navigation and location tracking system.

Product Description

Features:

Tag color: Black
Tag sticker colors: White, Blue, Yellow
Size (L x W x T): 106mm x 56mm x 6mm
Weight: 30 gram
Operating Frequency: ISM band – 2.4GHz
Operation range: ~10m @ indoor environment
Idle current: <150uA @ adv. Interval = 1.5s
Charging time: 15 to 30mins
Operation duration: 6 months per charge
Battery lifespan: Up to 10 years
Operation temperature: -20 ~ 55℃
Storage temperature: -5 ~ 35℃
Charging Life Cycle: >500 times

Applications:

Hotel Luggage Management System
Inventory Tracking System
Healthcare Application
Beacons, Tags
Logistics

Documents:

RTT7806 Electronic Tag User Guide

Ordering Code:

RTT7806: Electronic Tag
