RTM3993 UHF Reader Interface Board

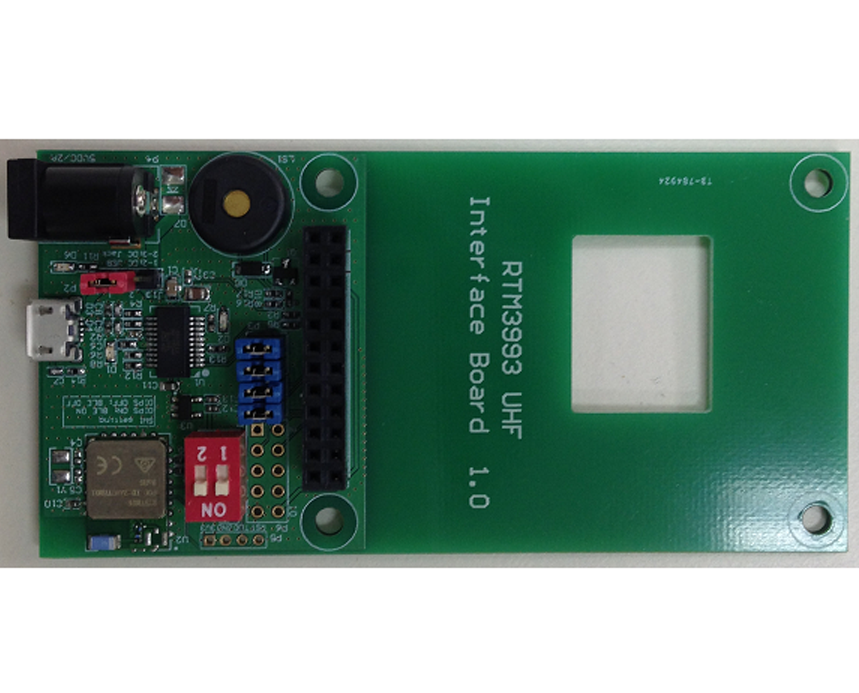

RTM3993 Interface Board is used for customer evaluate RTM3993 UHF Reader Modem Board performance as well as software development. By configuring proper interface to developing product, customer can easily use RTM3993 to development end product’s software and hardware performance.



Category: Tags: , , , ,

Product Description

Items inside Package:

  • 1pc x Interface board with BLE module mounted
  • 1pc x Directional patch antenna
  • ST25RU3993 Reader Suite
  • RTM3993 Demo APPS





Interface description:

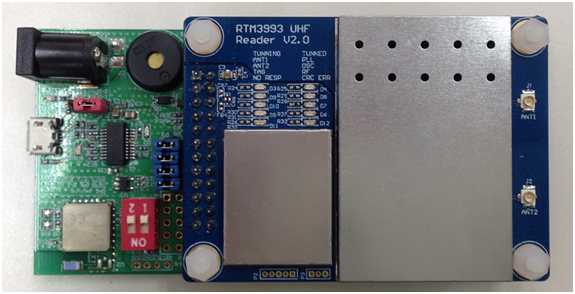

  • 24-pin female dual row 2.54mm connector [RTM3993 Reader Modem Board]
  • Micro USB to UART-to-USB convertor [ST25RU3993 Reader Suite]
  • 8-pin dual row 2.54mm header [UART selection]
  • DC Jack [+5VDC input]
  • 3-pin single row 2.54mm header [DC selection]
  • DIP switch [mode switch]
  • 10-pin dual row header connector [debugging]



Documents:



Software & Tools:



Ordering Code:

RTM3993 Interface Board:              RTM3993 UHF Reader Interface Board V1.0

Ordering information:      Please contact local distributors or email to sales@rfcom-tech.com
