Features:
- Board Connectivity:

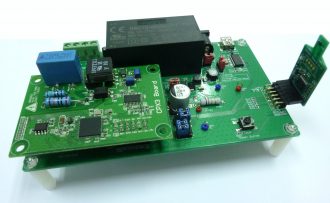

- RFCOM CPX3 Single-phase PLC Modem Board

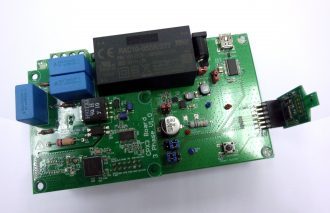

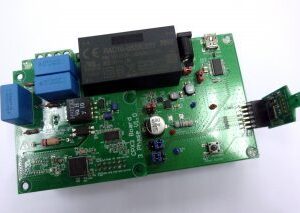

- RFCOM CPX3 3-phase PLC Modem Board

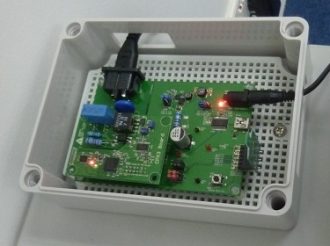

- RFCOM T&H Sensor Board
- Configurable AC or DC input power
- Configurable PLC operation voltage
- USB/UART Interface
- Test points
Specifications:
- Board size: 130mm x 80mm
- Signal interfaces: 1x UART; 1x USB
- On-board connectors:
- 1x 3-phase AC Terminal Blocks
- 1x DC Jack
- 1x Single-phase female header to RFCOM Single-phase CPX3 PLC Modem Board
- 1x 3-phase female header to RFCOM 3-phase CPX3 PLC Modem Board
- 1x dual-row 12-pin female header compatible with RFCOM Single/3-phase CPX3 PLC Modem Board
- 1x Mini-USB
- 1x PMOD header
- On-board jumpers:
- Several Jumpers for voltage and signal configuration
- Buttons: 1x Reset Button
- Operation voltage: 220-240VAC or 5VDC
- On-board Fully-isolated AC-to-DC module
- Operation temperature: -35°C to +85°C
Applications:
- Industrial and Building Automation HVAC (air conditioning)
- Environmental Monitoring
Documents:
- RFCOM PLC Baseboard One Page Guide
- RFCOM CPX3 3-Phase PLC Baseboard User Manual
Software & Tools:
- N.A
Ordering Code:

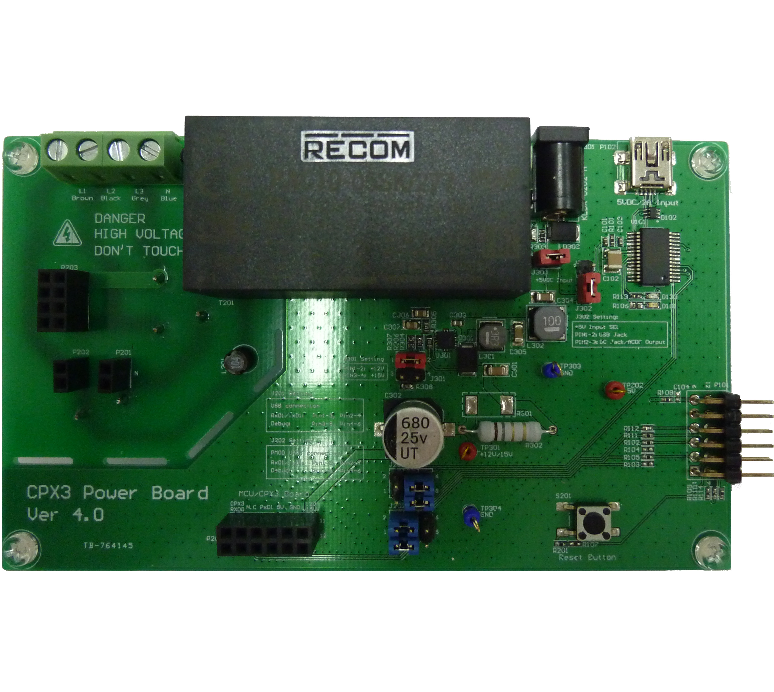

RFCOM PLC Baseboard: RFCOM 3-phase PLC Baseboard
Ordering information: Please contact local distributors or email to sales@rfcom-tech.com
