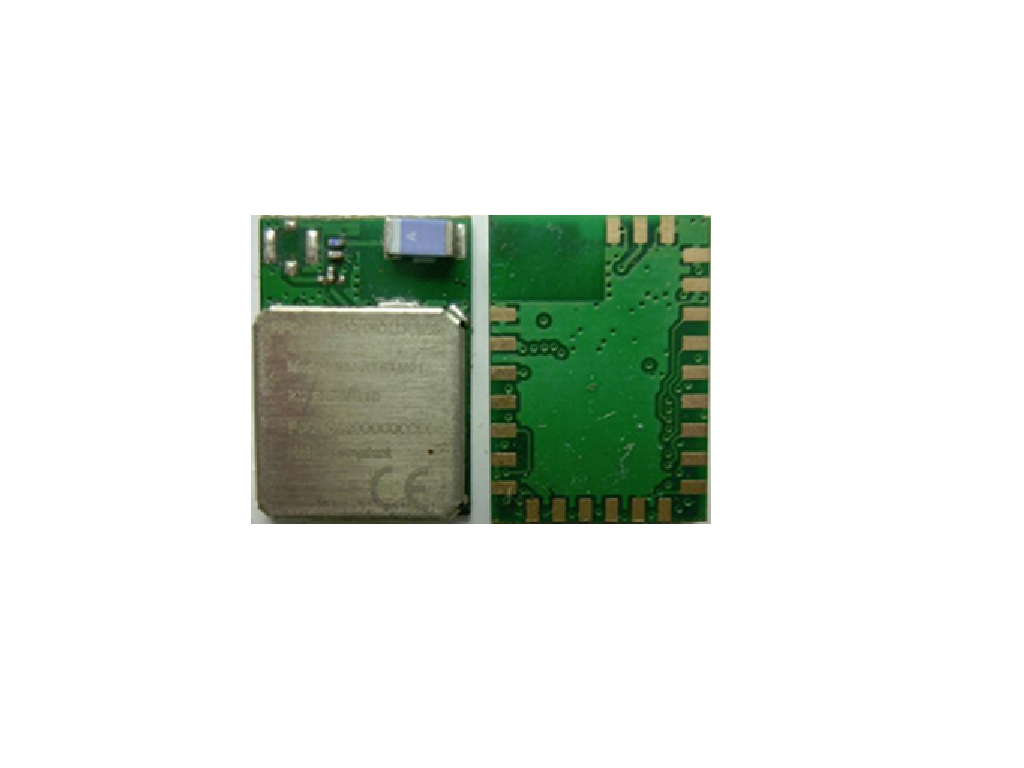

RTBTM01 Bluetooth Low Energy Module

RTBTM01 is a Bluetooth low energy module based on Renesas MCU RL78/G1D Bluetooth® Low Energy Protocol Stack. It is among the lowest power consumption Bluetooth Smart modules. The protocol stack is compliant with Bluetooth ver. 4.2 specifications.

This module has integrated RF Antenna, crystals, DC/DC inductor to make it easy to be used in the application product without requesting know-how of sensitive circuitry and RF design technics.

Features:

2.4 GHz ISM band, Bluetooth stack v4.2 compliance
- Low Energy single model Master & Slave
Support both Modem (default: host) and SoC (optional: hostless) mode
Small form factor for easy integration:
- 10.0mm x 14.0mm x 1.9mm
Long range sensitive at low power consumption:
- Line of sight up to 100m @ 0dBm Transmit power
- LE Advertise: 2.6mA, LE scan: 3.8mA & Standby <9.0uA
Pre-Approved CERTIFIED module:
- RoHS, CE, FCC, RCM
Radio capabilities
- Transmit power: 0dBm
- Receiver sensitivity: -89dBm
- Integrated chip antenna
Baseband capabilities
- 10-bit resolution A/D converter
- Software programmable GPIO
- Rich and flexible interfaces – CSI/ UART/I2C
- Operation voltage: 1.6V to 3.6V (DCDC: 1.8V to 3.6V)
Rich application profiles
Operation temperature: -30°C to +85°C

Applications:

Healthcare and fitness
M2M connectivity
Personal navigation devices
Consumer electronics
Industrial and home automation
Beacons, Tags

Documents:

Software & Tools:

Ordering Code:

RTBTM01-A1-10: RTBTM01 Bluetooth Low Energy Module

Ordering information: Please contact local distributors or email to sales@rfcom-tech.com
