Features:
- LTE Cat M1/Cat NB1 with ultra-low power consumption
- Data rate
- Cat M1: Max. 375kbps (DL) / 375 kbps (UL)
- Cat NB1: Max. 32kbps (DL) / 70 kbps (UL)
- Support PPP/TCP/UDP/TLS/FTP(S)/HTTP(S)/MQTT protocols
- Support Renesas Synergy Solutions
- Built in RF connectors, 3.3V DC output and external GPIOs
Specifications:
- Size: L 57mm x W 40mm
- Power Supply: +5VDC input
- SIM Card: Micro SIM
- MCU: Renesas S5D3
- ARM Cortex-M4 with FPU
- CPU Frequency: 120MHz
- Memory: 256KB SRAM
- Flash: 512KB
- Software: Synergy software SSP v1.5.0
- Interface:
- RF: IPEX RF connector
- External: 2x 2.00mm pitch 9-pin header
- UART/I2C/Digital IO/Analog ADC interface for expansion to external sensors and actuators
- On-board: UART/I2C/Digital IO/Analog ADC
- Operation temperature: -35°C to +80°C
- Storage temperature: -40°C to +85°C
Applications:
- Smart metering (electricity, gas and water)
- Industrial alarms & fire alarms for homes & commercial properties
- Smart city infrastructure, i.e. street lighting or dustbins
- Building Automation
- Environmental Monitoring
Documents:
- RTM96 One Page Guide
- RTM96 CAT-M1/NB1 Modem Board User Manual v1.0
Software & Tools:
- N.A
Ordering Code:

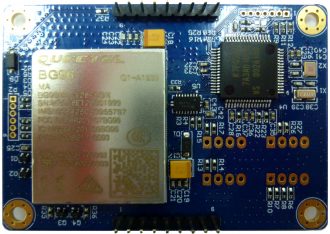

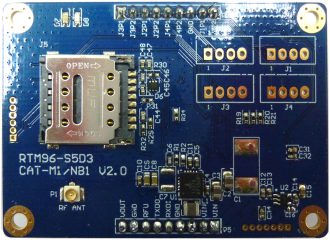

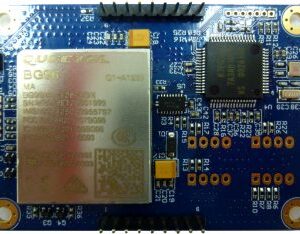

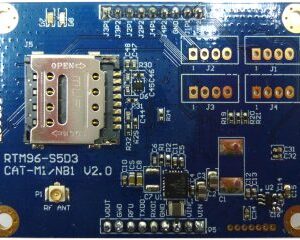

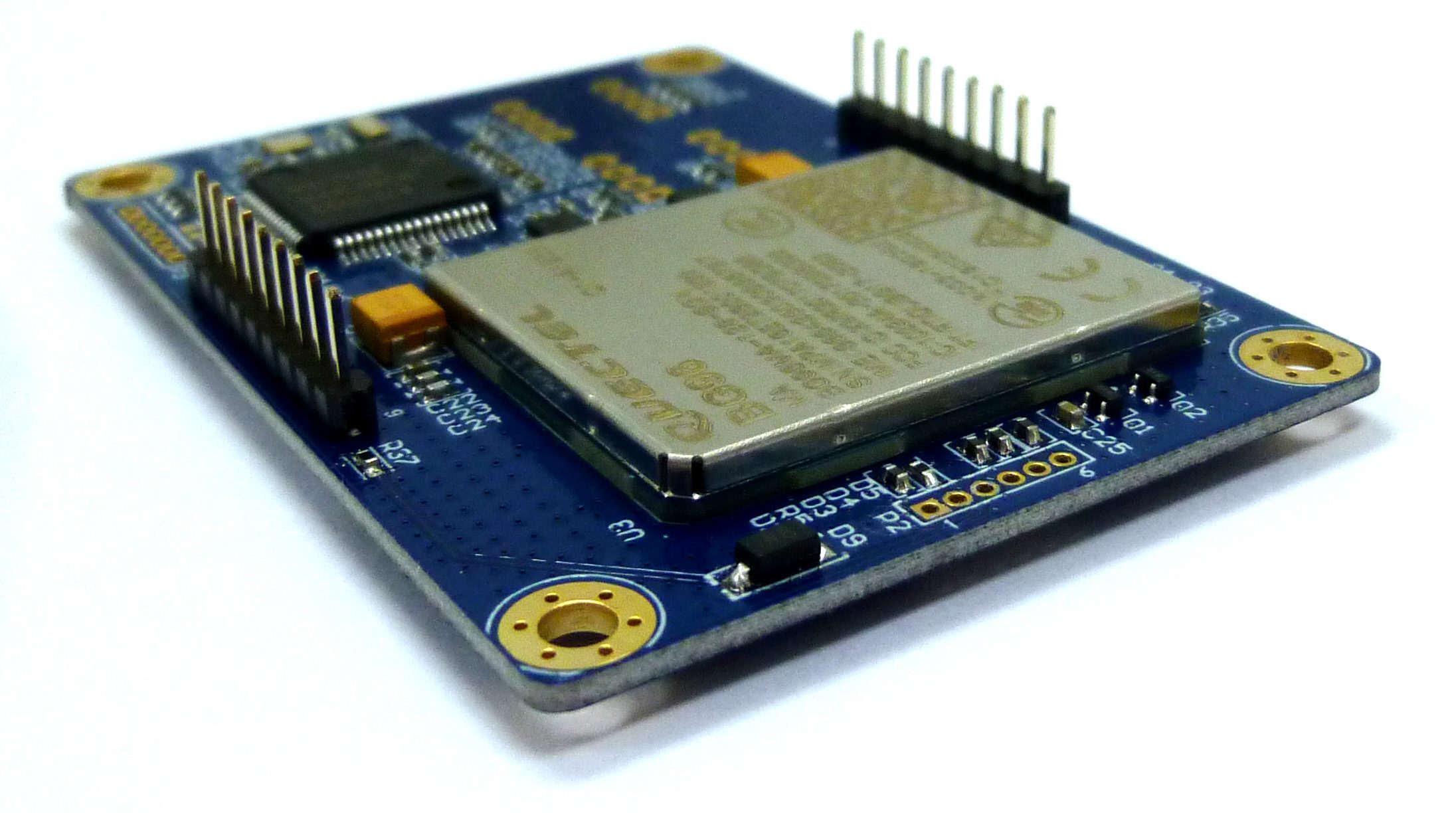

RTM96: RTM96 LTE CAT-M1/NB1 S5D3 Modem Board
Ordering information: Please contact local distributors or email to sales@rfcom-tech.com
