RTG2837 IoT Gateway

RTG2837 is a gateway device that acts as the bridge between RTT78xx electronics tag and cloud/server software. It is used in RFCOM Luggage Tracking and Management System (LMS), and it can be easily integrated into other application using its Web APIs.

The gateway runs on Broadcom BCM2837B0 1.4GHz 64bit quad-core processor. It also supports dual-band wireless LAN, Bluetooth V4.2/BLE, Gigabit Ethernet, four USB 2.0 ports and HDMI.

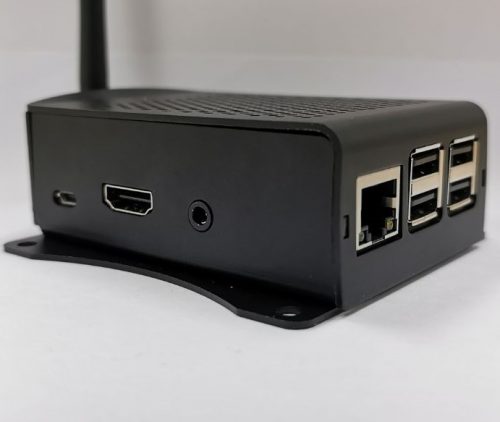

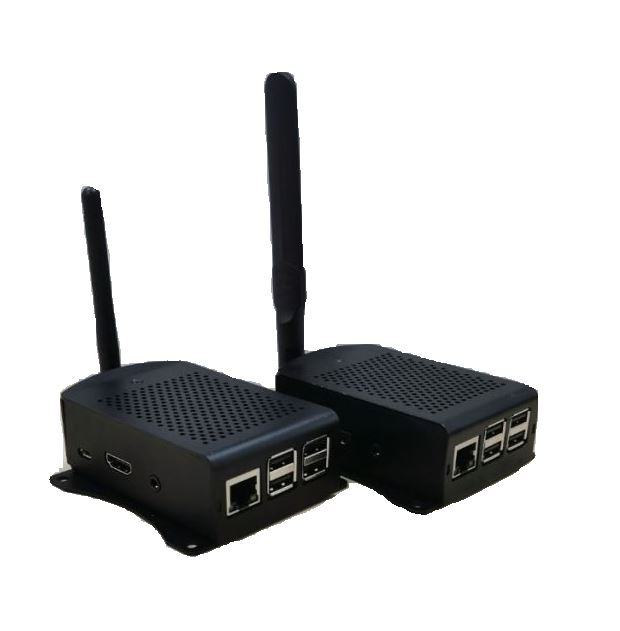

RTG2837 comes with a metal case with mounting holes for simple installation. It has external antenna to provide a wide operation range.

RTG2837 can be used in Hotel / Hospitality / Logistics / Inventory tracking applications.

Categories: Bluetooth, Gateway, WiFi Tags: API, BLE, Bluetooth 4.2, Ethernet, Gateway, IoT, Luggage Management System, WiFi

Description
Reviews (0)

Gateway features:

Gateway color: Black
Processors: BCM2837B0
Size (L x W x T): 96mm x 85mm x 34mm
Weight: 140 gram
Ethernet: Maximum throughput 300 Mbps
WIFI: 2.4GHz/5GHz IEEE 802.11b/g/b/ac, WLAN
Bluetooth: 4.2 & BLE
DC power input: 5V / 2.5A
Antenna: External
Range: Subject to node devices

Antenna features:

Bandwidth range: 2.4-2.5GHz & 4.9-5.9GHz
Connector: SMA
Operating temperature range: -40°c ~ +85°c
Gain: 3dBi / 8dBi
Antenna length: 11cm / 16cm
SWR: <1.5
Impedance: 50Ω

Applications:

Hotel Luggage Management System
Inventory Tracking System
Healthcare Application
Beacons, Tags
Logistics

Documents:

RTG2837 IoT Gateway User Guide

Ordering Code:

RTG2837: IoT Gateway with 5V DC Power Adapter
