Features:
- Support NB-PLC band:
o FCC band 150KHz – 450KHz [Default] o Cebelec band Cenelec-A-63kHz [Fine-tuning] - Support 3-phase AC line
- Fully-isolated Transformer design
- Plug and play network management to choose “Best Path” (Full Mesh Support)
- MAC Layer IEEE 802.15.4-2006
- Support min. IPv6 / UDP / ICMPv6 function to communicate based on 6LowPAN
- G3-PLC compliance
- Interfaces: UART, Single-Phase AC, DC, Ulink Connector
Specifications:
- Size: L 65mm x W 45mm
- DC Power: +15VDC & +5VDC input
- AC Power: 220 -240VAC
- MCU: Renesas CPX3 R9A06G037
- Software: Pre-programmed with fixed PANID/EUI
- Main Connectors:
- AC: Single Phase – Natural & Line
- DC: Dual row 2.54mm pitch 12pin header
- Operation temperature: -35°C to +80°C
- Storage temperature: -40°C to +85°C
Applications:
- Smart electricity metering
- Industrial alarms & fire alarms for homes & commercial properties
- Smart city lighting infrastructure
- Building Automation HVAC (air conditioning) System
- Environmental Monitoring
Documents:
Software & Tools:
- N.A
Ordering Code:

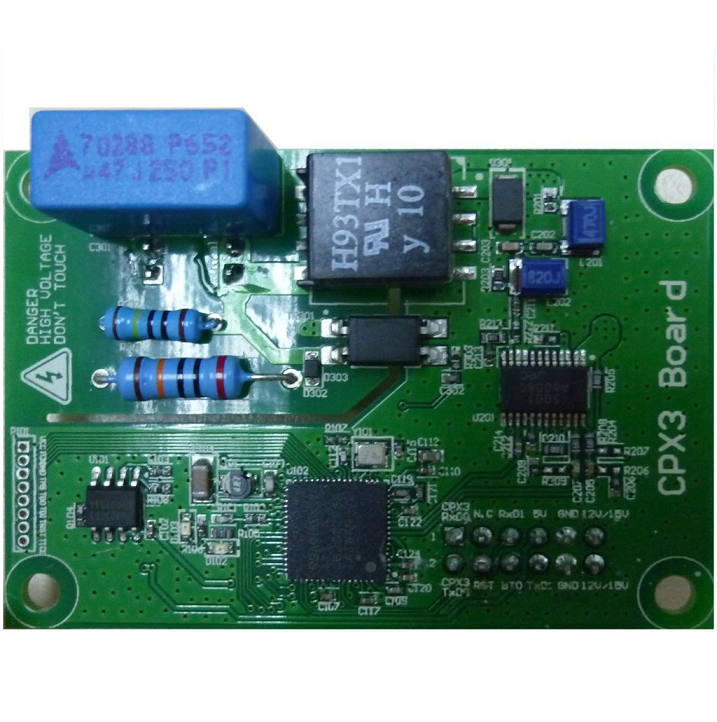

RFCOM Single-Phase CPX3 PLC Modem Board
Ordering information: Please contact local distributors or email to sales@rfcom-tech.com
