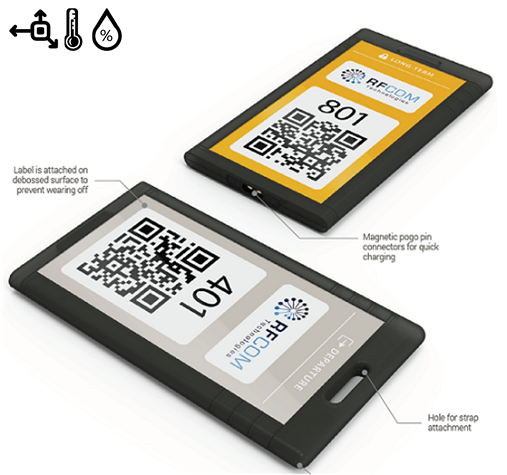

RTT7807 Electronic Tag With Sensors

Features:

• Tag color:                         Black
• Tag sticker colors:            White, Blue, Yellow

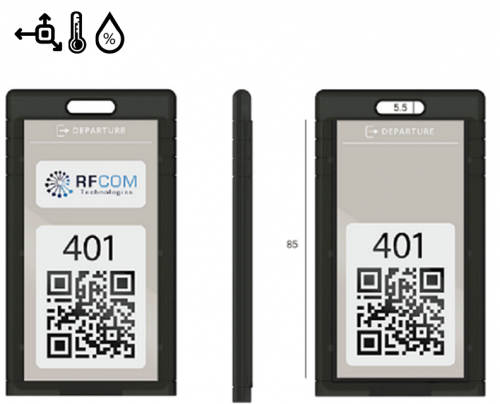

• Size (L x W x T):              106mm x 56mm x 6mm
• Weight:                             30 gram
• Operating Frequency:      ISM band – 2.4GHz
• Operation range:              ~10m @ indoor environment
• Idle current:                      <160uA @ adv. Interval = 1.5s

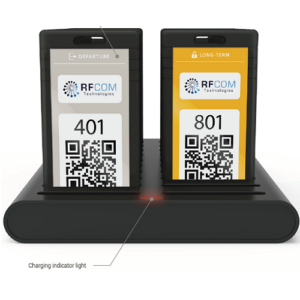

• Charging time:                 15 to 30mins
• Operation duration:          6 months per charge
• Temperature accuracy:    ±0.2°C
• Relative humidity range:  0 % to 100% ± 2 % accuracy
• Acceleration measurement range:     ±2.0, ±4.0, ±8.0, ±16.0g
• Battery lifespan:               Up to 10 years
• Operation temperature:    -20 ~ 55℃
• Storage temperature:       -5 ~ 35℃
• Charging Life Cycle:         >500 times

Applications:

• Hotel Luggage Management System
• Inventory Tracking System
• Healthcare Application
• Beacons, Tags
• Logistics
• Insurance

Documents:

• RTT7807 Electronic Tag User Guide

Ordering Code:

RTT7807:    Electronic Tag With Embedded Sensors
